Ligand conformations

This workflow shows how FEPA could be used to evaluate binding-pose similarity across ensembles. To do this, we will load ABFE trajectories, cluster binding poses using MDAnalysis Encore, and export both cluster assignments and representative centroid structures for visualization.

1. Loading ABFE Trajectories¶

We begin by loading the trajectories for a given compound and initializing the EnsembleHandler object:

import logging, os
from fepa.utils.file_utils import load_config
from fepa.utils.path_utils import load_abfe_paths_for_compound
from fepa.core.ensemble_handler import EnsembleHandler

# Load configuration
config_path = os.path.join("../../config/config.json")
config = load_config(config_path)
analysis_output_dir = "./wdir"
os.makedirs(analysis_output_dir, exist_ok=True)

van_list = [1, 2, 3]
leg_window_list = (
    [f"coul.{i:02}" for i in range(0, 11, 2)]
    + [f"vdw.{i:02}" for i in range(0, 12, 2)]
    + [f"rest.{i:02}" for i in range(0, 11, 2)]
)

path_dict = load_abfe_paths_for_compound(
    config,
    cmp=cmp,
    bp_selection_string="name CA and resid " + config["pocket_residues_string"],
    van_list=van_list,
    leg_window_list=leg_window_list,
    apo=False,
)

# Load trajectories
ensemble_handler = EnsembleHandler(path_dict)
ensemble_handler.make_universes()

check_bp_residue_consistency(ensemble_handler.get_universe_dict())

Here we collect all holo ensembles, ensure pocket residues are consistent across trajectories, and prepare the universes for analysis.

2. Clustering Ligand Binding Poses¶

We then perform binding-pose clustering using DBSCAN from MDAnalysis Encore. Each cluster represents a distinct ligand binding mode shared across the ensemble set.

sel = "resname unk"
universe_dict = ensemble_handler.get_universe_dict()
# Define clustering method
dbscan_method = encore.DBSCAN(
    eps=0.5, min_samples=5, algorithm="auto", leaf_size=30
)
# Define the ensemble list
ensemble_list = list(universe_dict.values())
# Cluster the binding poses
cluster_collection = encore.cluster(
    ensembles=ensemble_list,
    select=sel,
    superimposition_subset="name CA",
    method=dbscan_method,
)

This aligns the complexes on Cα atoms and clusters ligand heavy-atom coordinates to identify recurring conformations.

3. Saving Framewise Cluster Assignments¶

The cluster identity for each frame is stored in a DataFrame and written to disk:

cluster_df = pd.DataFrame({
    "timestep": timstep_series,
    "ensemble": ensemble_series,
    "cluster": cluster_series,
})
cluster_df.to_csv(
    os.path.join(cmp_output_dir, f"{cmp}_conformation_cluster_df.csv"),
    index=False,
)

4. Exporting Cluster Centroid Structures¶

For visualization in PyMOL or ChimeraX, we extract each cluster’s centroid frame as a PDB file:

ensemble_handler.dump_frames(
    ensemble=centroid_ensemble,
    timestep=centroid_timestep,
    save_path=os.path.join(
        cmp_output_dir,
        f"{cmp}_conformation_cluster_{cluster_id}.pdb",
    ),
)

These structures serve as representative snapshots of each binding mode.

5. Visualizing Cluster Populations¶

We can summarize cluster occupancy across ensembles using a simple stacked bar plot:

# Plot a stacked barplot of clusters in each ensemble
cluster_counts = (
    cluster_df.groupby(["ensemble", "cluster"]).size().unstack(fill_value=0)
)
cluster_counts.plot(
    kind="bar",
    stacked=True,
    figsize=(10, 6),
    colormap="Set2",
)
plt.title(f"Cluster distribution in each ensemble for {cmp}")
plt.xlabel("Ensemble")
plt.ylabel("Count")
plt.xticks(rotation=90)
plt.legend(title="Cluster", bbox_to_anchor=(1.05, 1), loc="upper left")
plt.tight_layout()
plt.savefig(
    os.path.join(
    analysis_output_dir,
    f"{cmp}_conformation_cluster_distribution.png",
    )
)
plt.close()

This visualization highlights whether certain λ-windows prefer specific ligand poses, helping diagnose convergence and structural consistency across ABFE simulations.

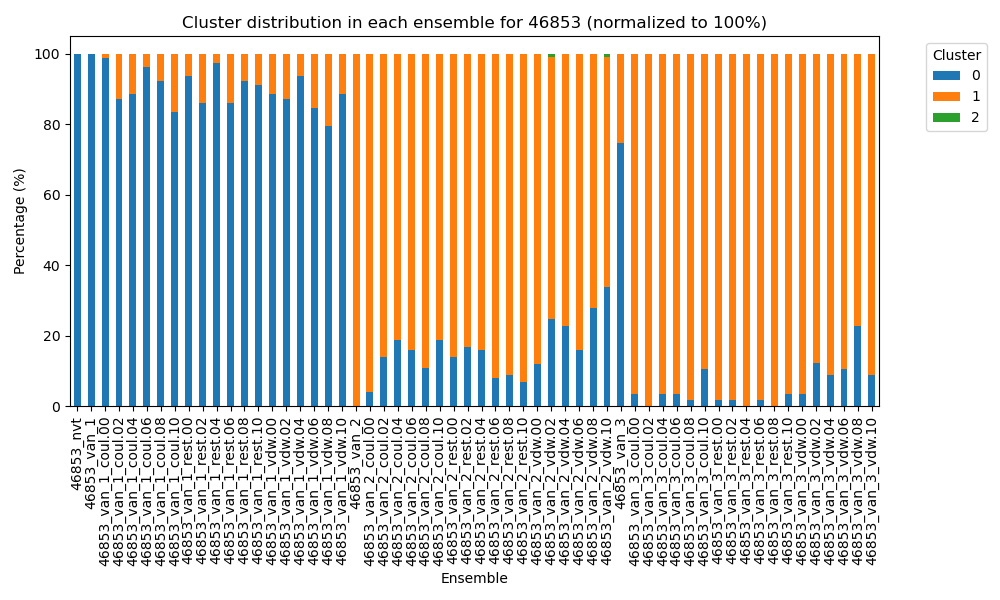

Figure-1 Figure 1. Stacked bar plot of conformations for ligand 46853 (OX2R, Deflorian et al set 1) across ABFE windows for three ABFE runs. The ligand adopts one pose in run 1 and a different pose in runs 2 and 3.

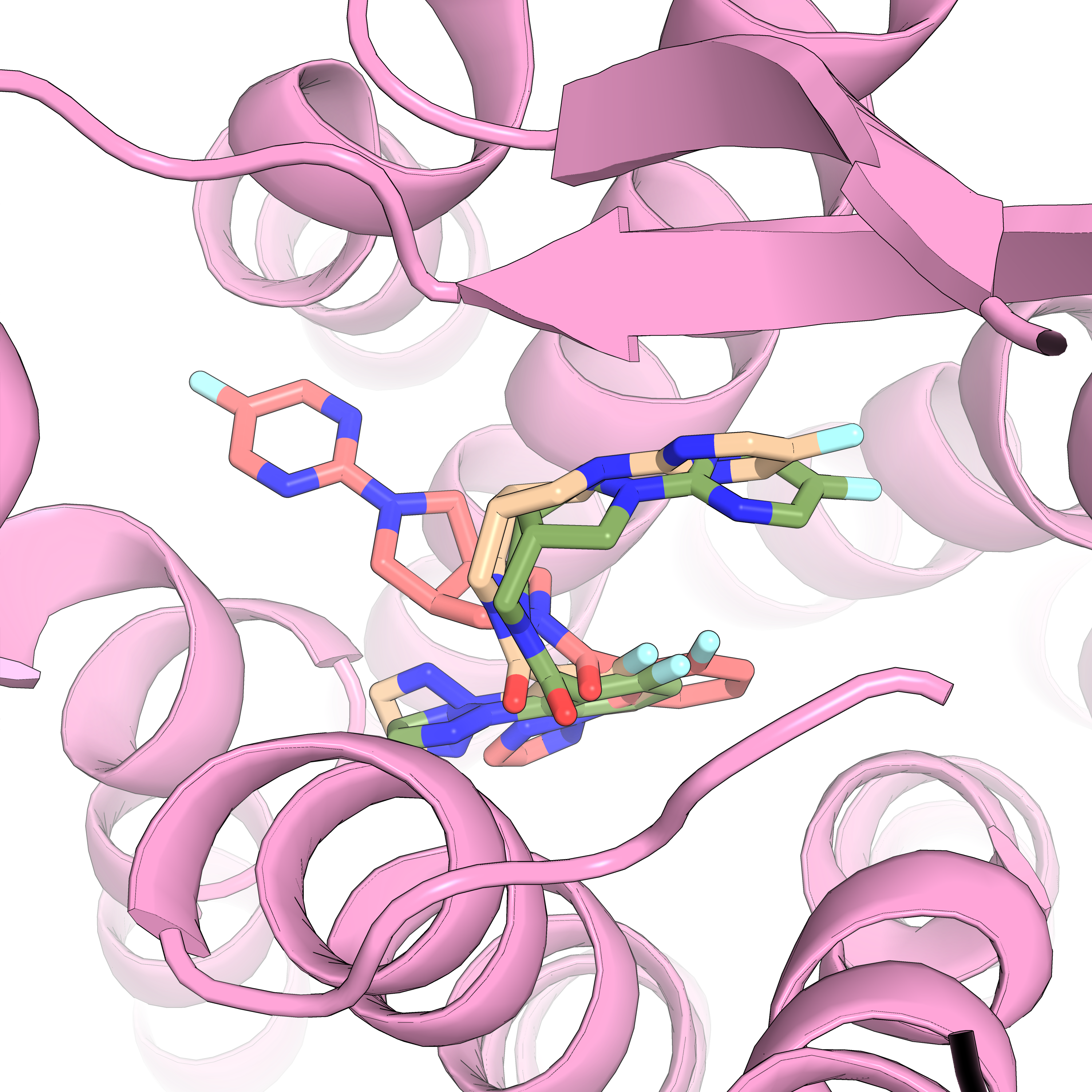

Figure-2 Figure 2. Visualization of the PDBs shows that while the binding poses in clusters 0 and 1 are crystal-like and similar to each other, they differ in the orientation of the triazole ring. Cluster 2, however, is very different. Fortunately, cluster 2 is rare in the simulations, so the calculations predominantly reflect the crystal-like pose.
