Binding Pocket Resolvation Analysis

import logging, os
from fepa.utils.file_utils import load_config
from fepa.utils.path_utils import load_abfe_paths_for_compound

logging.basicConfig(level=logging.INFO, format="%(asctime)s - %(levelname)s - %(message)s")

config = load_config("../../config/config.json")
analysis_output_dir = "wdir"
cmp = config["compounds"][0]

logging.info("Analyzing compound %s ...", cmp)
cmp_output_dir = os.path.join(analysis_output_dir, cmp)
os.makedirs(cmp_output_dir, exist_ok=True)

logging.info("Loading paths for compound %s...", cmp)
path_dict = load_abfe_paths_for_compound(
    config,
    cmp,
    van_list=[1, 2, 3],
    leg_window_list=[f"coul.{i:02d}" for i in range(0, 11)]
                     + [f"rest.{i:02d}" for i in range(0, 12)]
                     + [f"vdw.{i:02d}" for i in range(0, 21)],
    bp_selection_string="name CA and resid 57 58 61 64 83 84 87 88 91 92 173 177 218 221 235 238 239 242 243 246",
    apo=False,
)

from fepa.core.ensemble_handler import EnsembleHandler
from fepa.core.featurizers import BPWaterFeaturizer

logging.info("Loading trajectories for compound %s ...", cmp)
ensemble_handler = EnsembleHandler(path_dict)
ensemble_handler.make_universes()

logging.info("Featurizing binding pocket waters ...")
bp_water_featurizer = BPWaterFeaturizer(ensemble_handler=ensemble_handler)
bp_water_featurizer.featurize(radius=10)  # Count waters within 10 Å of pocket COM

logging.info("Saving features for compound %s ...", cmp)
bp_water_featurizer.save_features(cmp_output_dir, overwrite=True)

import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

features_df = pd.read_csv(os.path.join(cmp_output_dir, "WaterOccupancy_features.csv"))

for van in [1, 2, 3]:
    van_features_df = features_df[features_df["ensemble"].str.contains(f"van_{van}")]
    plt.figure(figsize=(12, 6))
    sns.lineplot(data=van_features_df, x="Time (ps)", y="occupancy", hue="ensemble")
    plt.title(f"Water Occupancy for {cmp}")
    plt.xlabel("Time (ps)")
    plt.ylabel("Number of Waters")
    plt.xlim(0, 20000)
    plt.legend(title="Ensemble", bbox_to_anchor=(1.05, 1), loc="upper left", ncol=2)
    plt.tight_layout()
    plt.savefig(os.path.join(cmp_output_dir, f"{cmp}_water_occupancy_van{van}.png"))

# Extract vanilla replicate and window ID
features_df["van"] = features_df["ensemble"].str.extract(r"van_(\d)")
features_df["id"] = features_df["ensemble"].str.replace(r"_van_\d+", "", regex=True)

# Compute average occupancy
avg_df = features_df.groupby(["id", "van"], as_index=False)["occupancy"].mean()
avg_df.to_csv(os.path.join(cmp_output_dir, "avg_water_occupancy.csv"), index=False)

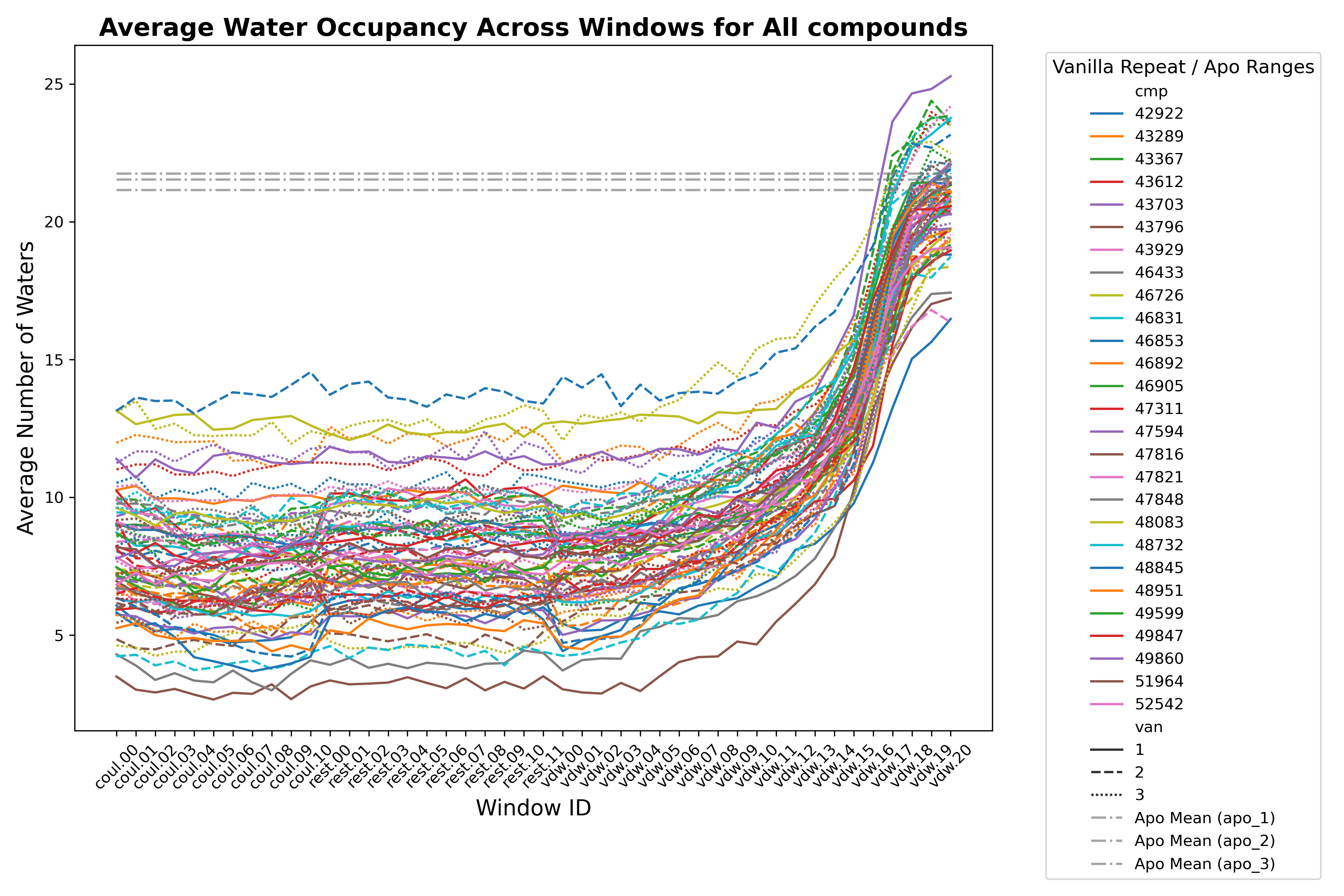

# Plot average occupancy
plt.figure(figsize=(12, 8))
sns.lineplot(data=avg_df, x="id", y="occupancy", hue="van", palette="tab10")
plt.title(f"Average Water Occupancy Across Windows for {cmp}", fontsize=16, fontweight="bold")
plt.xlabel("Window ID", fontsize=14)
plt.ylabel("Average Number of Waters", fontsize=14)
plt.legend(title="Vanilla Repeat", title_fontsize=12, fontsize=10, loc="upper right")
plt.xticks(rotation=45, fontsize=10)
plt.yticks(fontsize=10)
plt.tight_layout()
plt.savefig(os.path.join(cmp_output_dir, f"{cmp}_water_occupancy_across_windows.png"), dpi=300)
plt.close()
